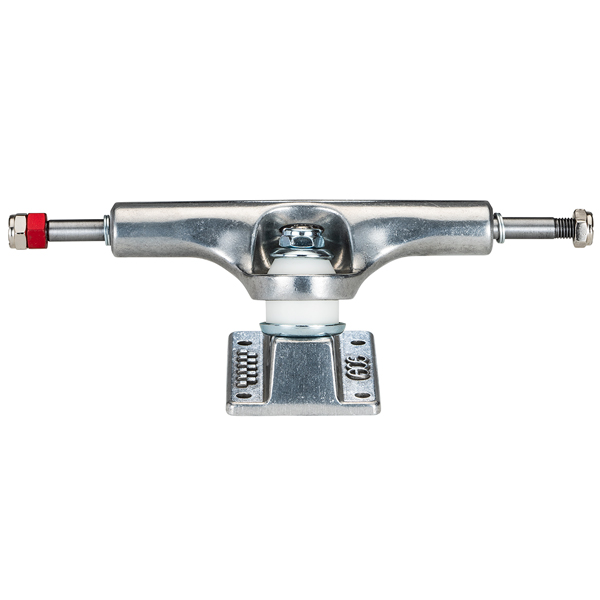

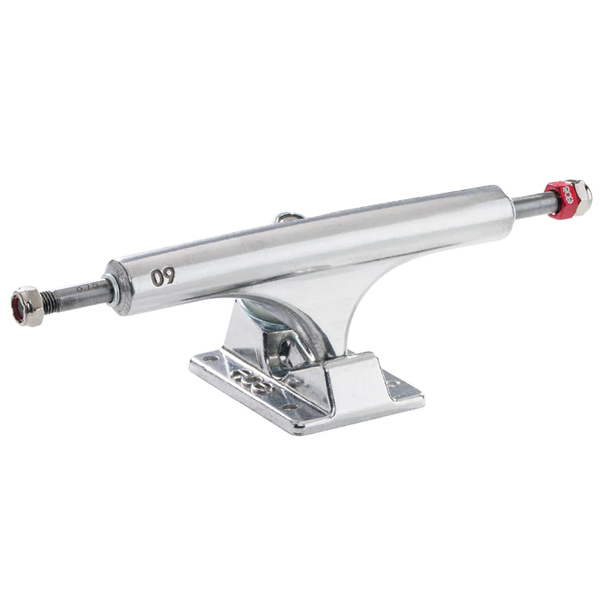

Skateboard trucks

AF1 60 Specs:

• Axle width: 8.75”

• Hanger width: 5.6”

• Truck height: 2.1”

• Fits boards: 8.625” – 8.875”

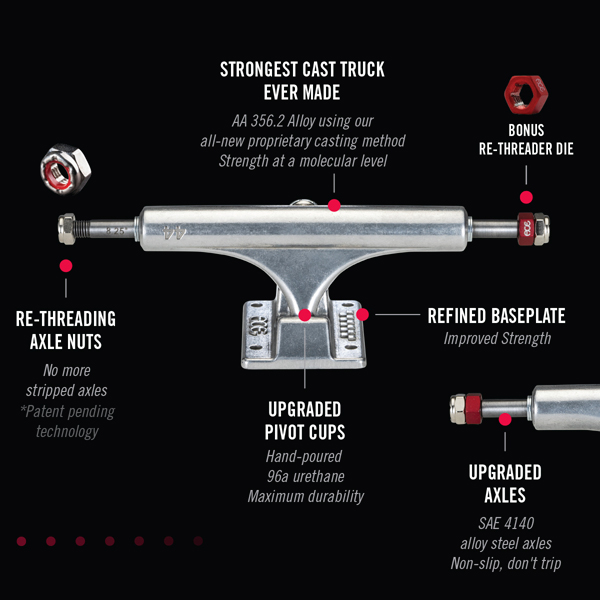

• Manufactured with superior quality AA 356.2 alloy using our own proprietary casting method.
• True T6 heat-treated baseplates and hangers.
• SAE 4140 steel alloy axles, oversized to eliminate bearing wobble.
• Patent pending rethreading axle nuts – no more damaged axle ends!
• Top Bushing: 12mm tall | 91a hardness
• Bottom Bushing: Bottom 14mm tall | 86a hardness

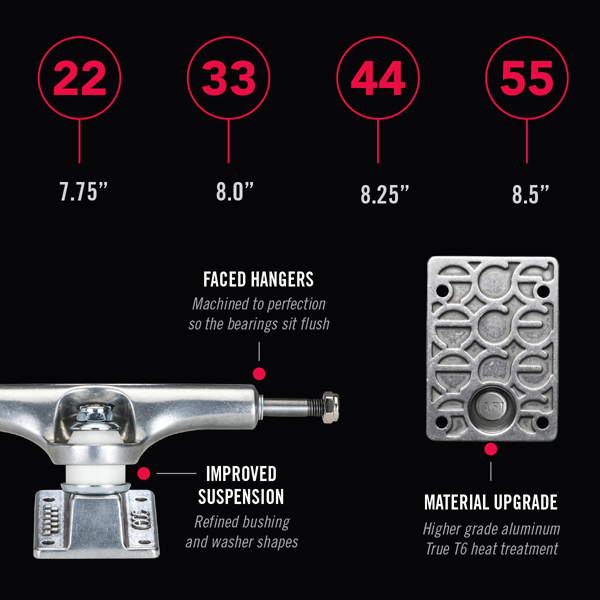

• Refined bushing and cup washer shapes for a cleaner turn.
• Machine-faced hanger ends for precise bearing contact.

The all-new ACE AF1 features game-changing performance without deviating from ouroriginalAce geometry. The AF1is carefullymanufactured usingourproprietary casting process.Yearsin development, the ACE AF1 has a 70% increase in the aluminum’s structural integrity,making it the strongest cast truck onthe market.We updated the sizing on the 44 thru77modelsfor a better fit across multiple board widths.The Ace AF1, tomorrow’s technology today!

Sold in pairs.
